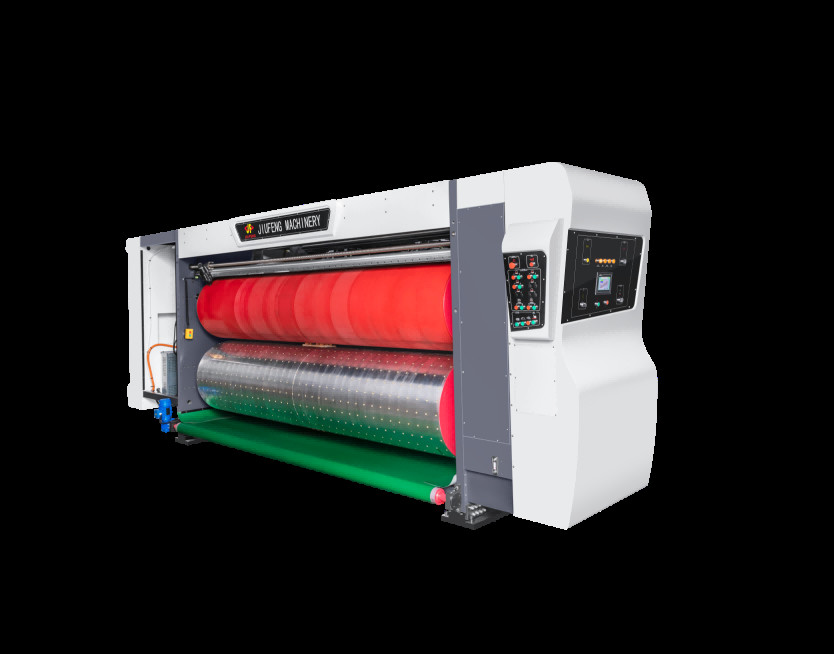

G6-1224 Lead Edge Vacuum Transfer 4 Color Printer+Slotter +Die
Cutter+Vibrator+ Stacker
(Vacuum Transfer,Top Print)
Machine performance characteristics:
The system features integrated single-command control for
operational parameter configuration, order management, and
production adjustments, enabling simplified high-velocity operation
with micron-level precision calibration. A multi-zone vertical
vacuum system with high-pressure dust extraction ensures optimal
print surface preparation through segmented airflow management,
maintaining exceptional graphic definition across production runs.
Power transmission employs synchronized belt-gear drives combined
with advanced edge-gripping vacuum conveyors, enhanced with
variable-frequency vacuum pressure regulation for automatic
adaptation to diverse substrate dimensions and curvature
variations. The maintenance-free shaft coupling mechanism
eliminates traditional keyway designs, guaranteeing permanent
gear-shaft integrity and sustained print cylinder concentricity
during extended operations.Drive components utilize tungsten-carbide treated alloy steel gears
precision-ground to Rockwell 58-62 hardness specifications through
specialized heat treatment processes. The modular anilox roller
assembly incorporates quick-change blade/scraper configurations,
enabling dynamic mechanical reconfiguration for varied production
requirements.
Printing operations are governed by PLC-controlled automation
systems featuring proprietary micro-pressure technology. This
includes computer-regulated plate cylinder elevation control and
patented bottom-roll pressure adjustment mechanisms achieving 0.1mm
precision increments, ensuring consistent impression force
management throughout the printing process.
Technical parameter:
MODEL | G6-1224 |
The Length of feeding(A) | Max | 2500MM |
| Min | 600MM |
The Width of feeding(F) | Continue feeding | 1200MM |
| skip feeding | 1400MM |
| Min of feeding | 420MM |
| Max printing(F×A) | 1150x2400MM |
Minimum spacing of cutter plate | Reverse knife (BxCxBxC) | 250x80x250x80MM |
| Depth of slotting | Max | 320MM |
| The height of carton box(E) | Min | 110MM |
| The max for die cutting(FxA) | 1150x2400MM |
| Speed pcs/min | Max speed | 250MM |
| Economic speed | 120-160MM |
| Thickness of paperboard | 1.5-11MM |
| Thickness of printing plate | 7.2MM |
Factory Introduction:
Our production line is a carton back-end process production line
which integrate the advanced technology and excellent
professionals,The engineers have deep professional knowledge an
optimized technical background who are responsible for the all
production lines design, commissioning and maintenance. They can
optimize the production line according to customer requirement and
the actual situation to improve production efficiency and
quality.The production line is also equipped with other
professionals, such as quality control personnel and equipment
maintenance personnel, etc. They are responsible for different
responsibilities and jointly ensure the normal operation of the
production line and the quality of the cartons.
Packing and Shipping:
Product Packaging:
- The corrugated printer slotter will be packed in a sturdy cardboard
box.
- The box will be secured with adhesive tape to prevent any damage
during transit.
- The product will be wrapped in protective bubble wrap or foam to
provide extra cushioning.
Shipping:
- The product will be shipped via a reputable courier service.
- The shipping cost will be calculated based on the destination and
weight of the package.
- Customers will receive a tracking number to monitor the delivery
status of their package.
- Delivery times may vary depending on the location of the customer.
